Description

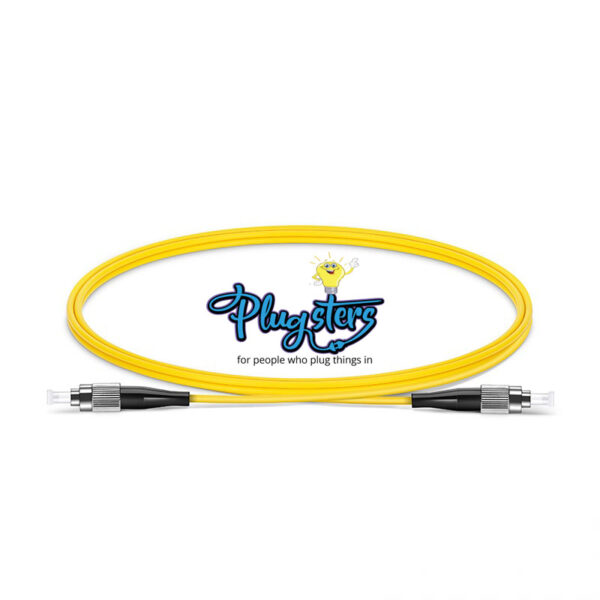

OS2 G.657.A2 FC/UPC to FC/UPC Simplex OFNR 2.0mm Fiber Patch Cable
High Quality and Cost-effective 9/125μm Single Mode Bend Insensitive Fiber Optic Cable
Specifications:
Connector Type G.657.A2 FC/UPC to FC/UPC
Fiber Grade G.657.A1 (Compatible with G.652.D)
Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm
Insertion Loss ≤0.3dB
Return Loss ≥50dB
Min. Bend Radius (Fiber Core) 10mm
Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static)
Attenuation at 1310 nm 0.36 dB/km
Attenuation at 1550 nm 0.22 dB/km
Fiber Count Simplex
Cable Diameter 2.0mm
Cable Jacket PVC
Polarity A (Tx) to B (Rx)
Operating Temperature -20~70°C
Storage Temperature-40~80°C
10/5D Min. Bend Radius
The G.657.A1 fiber allows tighter cable bends for slack storage and routing.
Zirconia Ceramic Ferrule
The precision ferrules can reach up to 500 times insertion lifespan.
90-150N Tensile Strength
The pull-resistant cable prevents cable breaking and prolongs the service life.
