Description

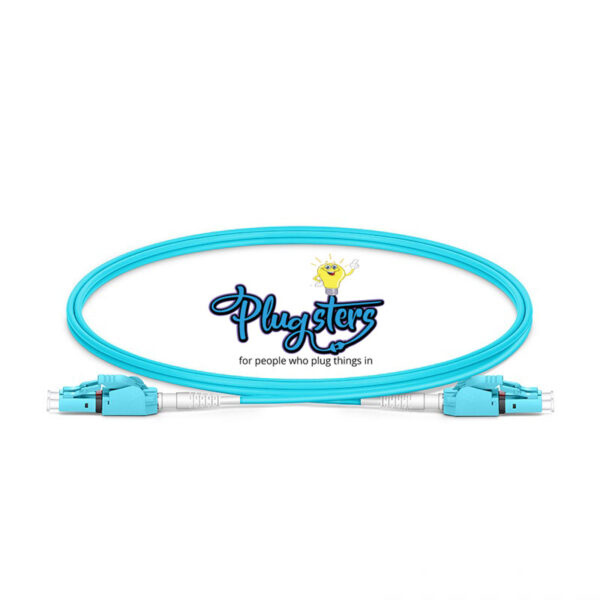

OM4 Multimode Duplex Switchable Clip Uniboot LC/UPC to LC/UPC
OM4 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable
Specifications:
Connector Type: LC to LC (Senko)
Polish Type: UPC to UPC
Fiber Mode: OM4 50/125μm
Fiber Count: Duplex
Fiber Grade: Bend Insensitive
Minimum Bend Radius: 7.5mm
Cable Diameter: 2.0mm
Cable Jacket: PVC
Insertion Loss: ≤0.2dB
Return Loss: ≥30dB
Pull-out Force: 100N
Durability: 500 Cycles
Operating Temperature: -10~70°C
Storage Temperature: -20~70°C
Carrier-grade Cable Ensures Transmission Quality
Superior cable assemblies reduce light loss during cable bending and easily meet your diverse cabling requirements.

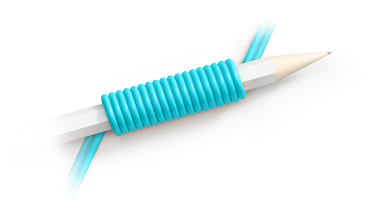

20/10D Min. Bend Radius
Bend insensitive fiber allows tighter cable bends for slack storage and routing.

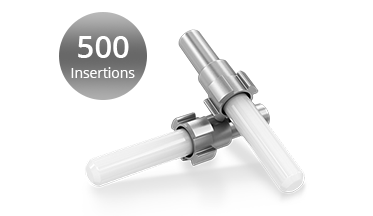

Zirconia Ceramic Ferrule
The precision ferrules can reach up to 500 times insertion lifespan.

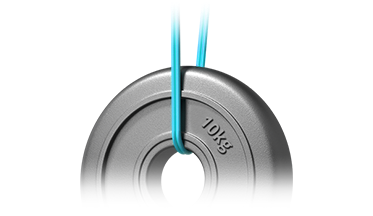

90-150N Tensile Strength
The pull-resistant cable prevents cable breaking and prolongs the service life.

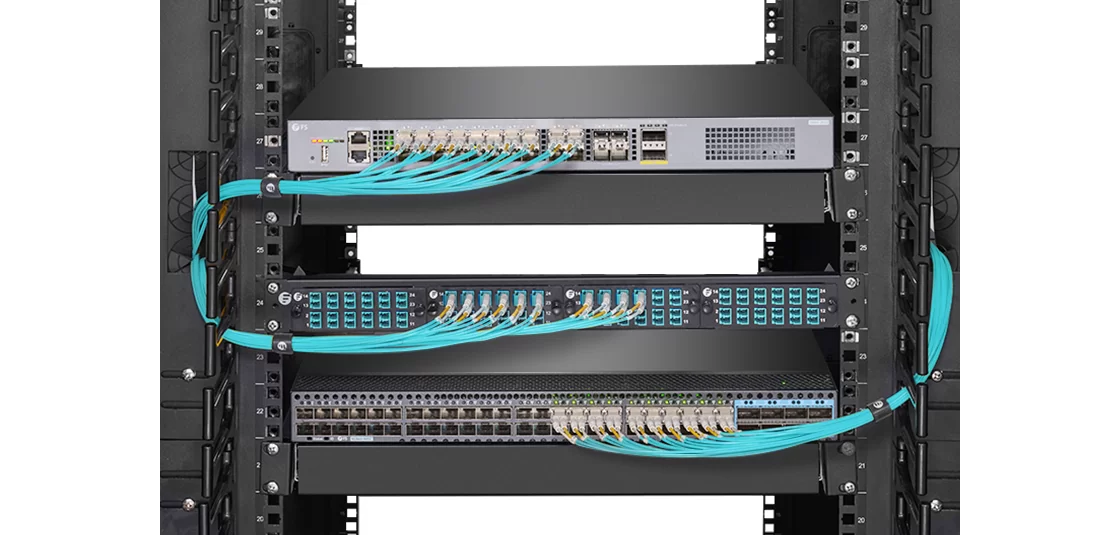

Spine-Leaf Architecture Achieve Larger Network Scale
Prevent network bottlenecks, reduce network latency, and expanding bandwidth and scalability for future network expansion.
