Description

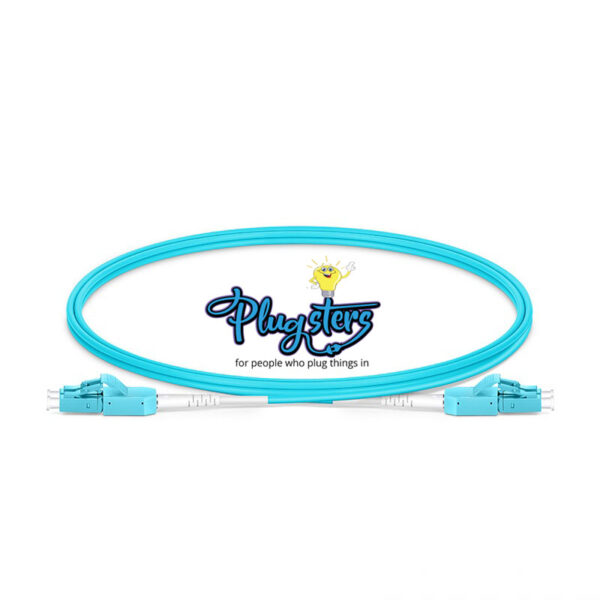

OM4 Multimode Duplex Standard Clip Uniboot LC/UPC to LC/UPC
OM4 Multimode PVC (OFNR) 2.0mm BIF Fiber Optic Patch Cable
Specifications:
Connector Type: LC/UPC to LC/UPC
Fiber Grade: Corning BIF
Fiber Count: Duplex
Fiber Mode: OM4 50/125μm
Wavelength: 850/1300nm
Insertion Loss: ≤0.2dB
Return Loss: ≥30dB
Min. Bend Radius: (Fiber Core) 7.5mm
Min. Bend Radius: (Fiber Cable) 20/10D (Dynamic/Static)
Attenuation at 850nm: 3.0 dB/km
Attenuation at 1300nm: 1.5 dB/km
Cable Jacket: PVC
Cable Diameter: 2.0mm
Polarity: A (Tx) to B (Rx)
Operating Temperature: -20~70°C
Durability: 50 Cycles
Carrier-grade Cable Ensures Transmission Quality
Superior cable assemblies reduce light loss during cable bending and easily meet your diverse cabling requirements.
20/10D Min. Bend Radius
Bend insensitive fiber allows tighter cable bends for slack storage and routing.
Zirconia Ceramic Ferrule
The precision ferrules can reach up to 500 times insertion lifespan.
90-150N Tensile Strength
The pull-resistant cable prevents cable breaking and prolongs the service life.
Spine-Leaf Architecture Achieve Larger Network Scale
Prevent network bottlenecks, reduce network latency, and expanding bandwidth and scalability for future network expansion.
