Description

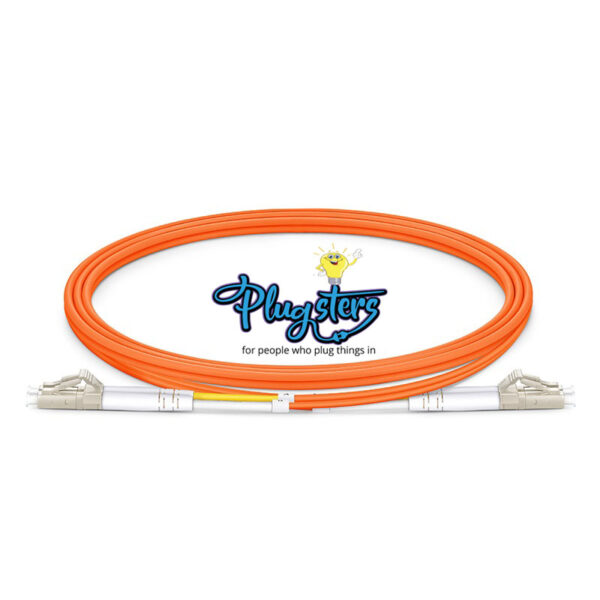

OM2 Multimode Duplex LC/UPC to LC/UPC
PVC (OFNR) 2.0mm Fiber Optic Patch Cable
Specifications:
Connector Type: LC/UPC to LC/UPC
Fiber Grade: Bend Insensitive
Fiber Count: Duplex
Fiber Mode: OM2 50/125μm
Wavelength: 850/1300nm
1G Ethernet Distance: 550m at 850nm
Insertion Loss: ≤0.3dB
Return Loss: ≥30dB
Min. Bend Radius: (Fiber Core) 7.5mm
Min. Bend Radius: (Fiber Cable) 20/10D (Dynamic/Static)
Attenuation at 850nm: 3.0 dB/km
Attenuation at 1300nm: 1.0 dB/km
Cable Jacket: PVC
Cable Diameter: 2.0mm
Polarity: A (Tx) to B (Rx)
Operating Temperature: -20~70°C
Carrier-grade Cable Ensures Transmission Quality
Superior cable assemblies reduce light loss during cable bending and easily meet your diverse cabling requirements.
90-150N Tensile Strength
The pull-resistant cable prevents cable breaking and prolongs the service life.
Zirconia Ceramic Ferrule
The precision ferrules can reach up to 500 times insertion lifespan.
2.0mm Slim Cable
The 2.0mm cable can reduce the pressure of the wiring conduit.
Spine-Leaf Architecture Achieve Larger Network Scale
Prevent network bottlenecks, reduce network latency, and expanding bandwidth and scalability for future network expansion.
